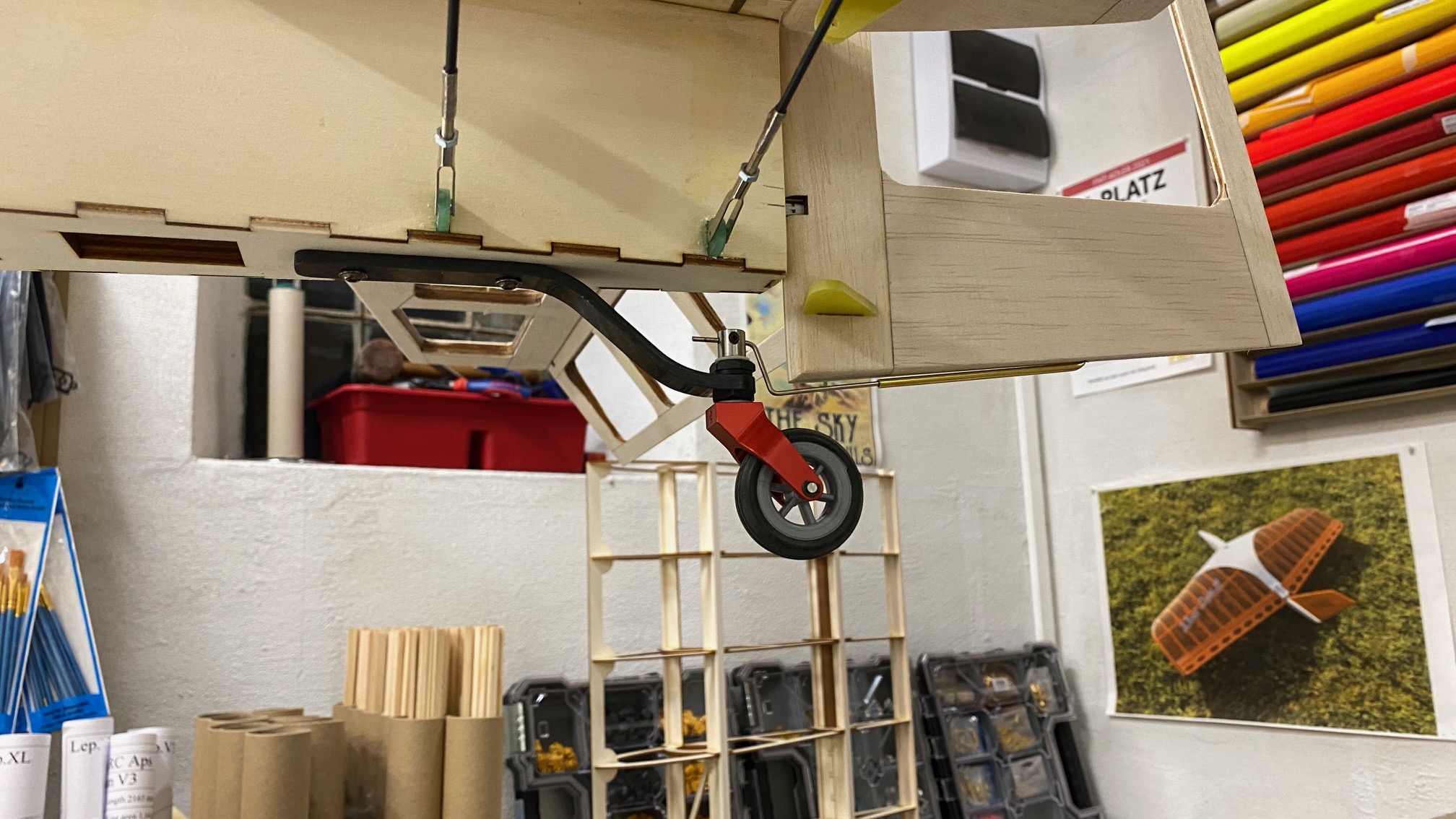

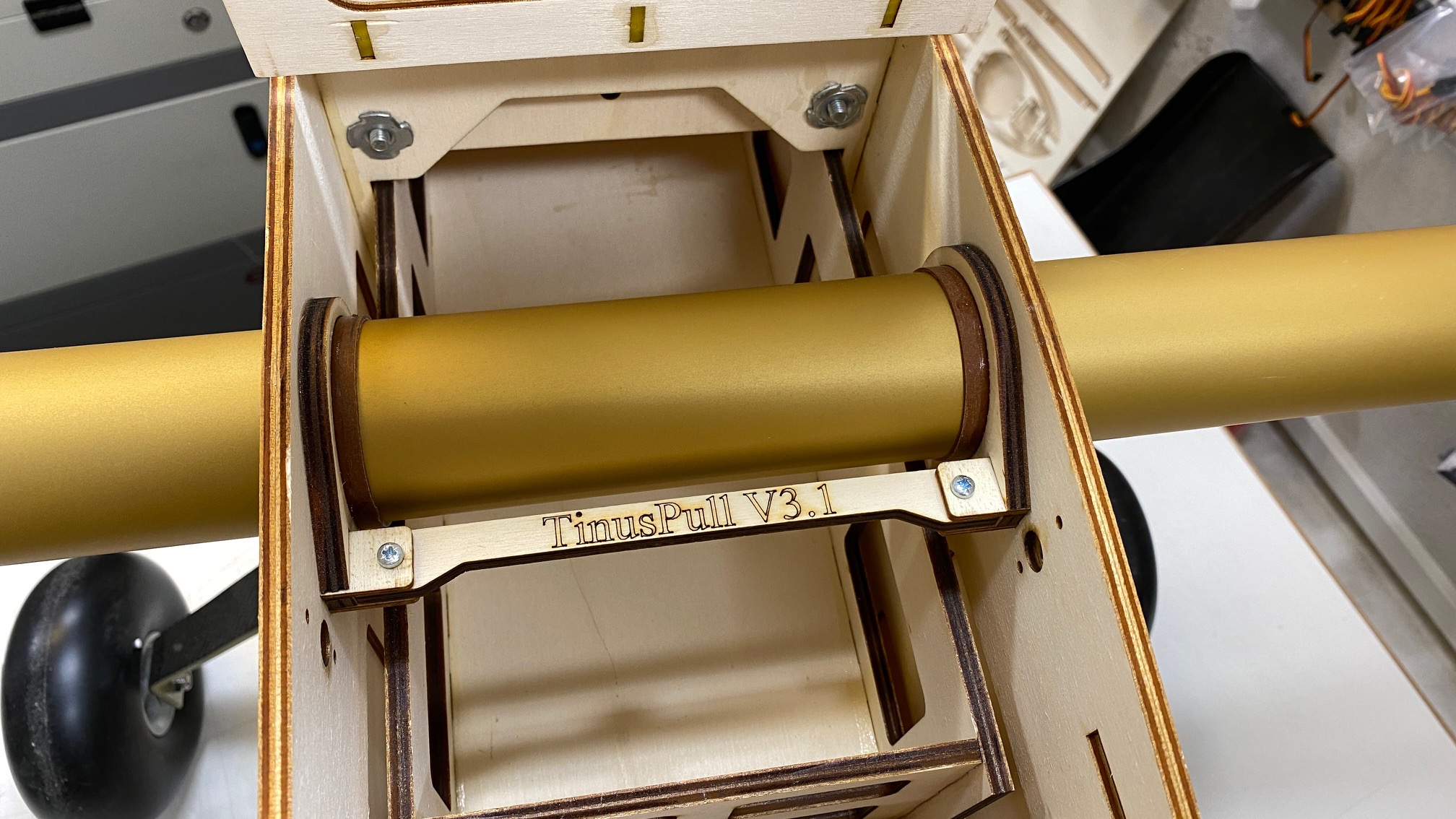

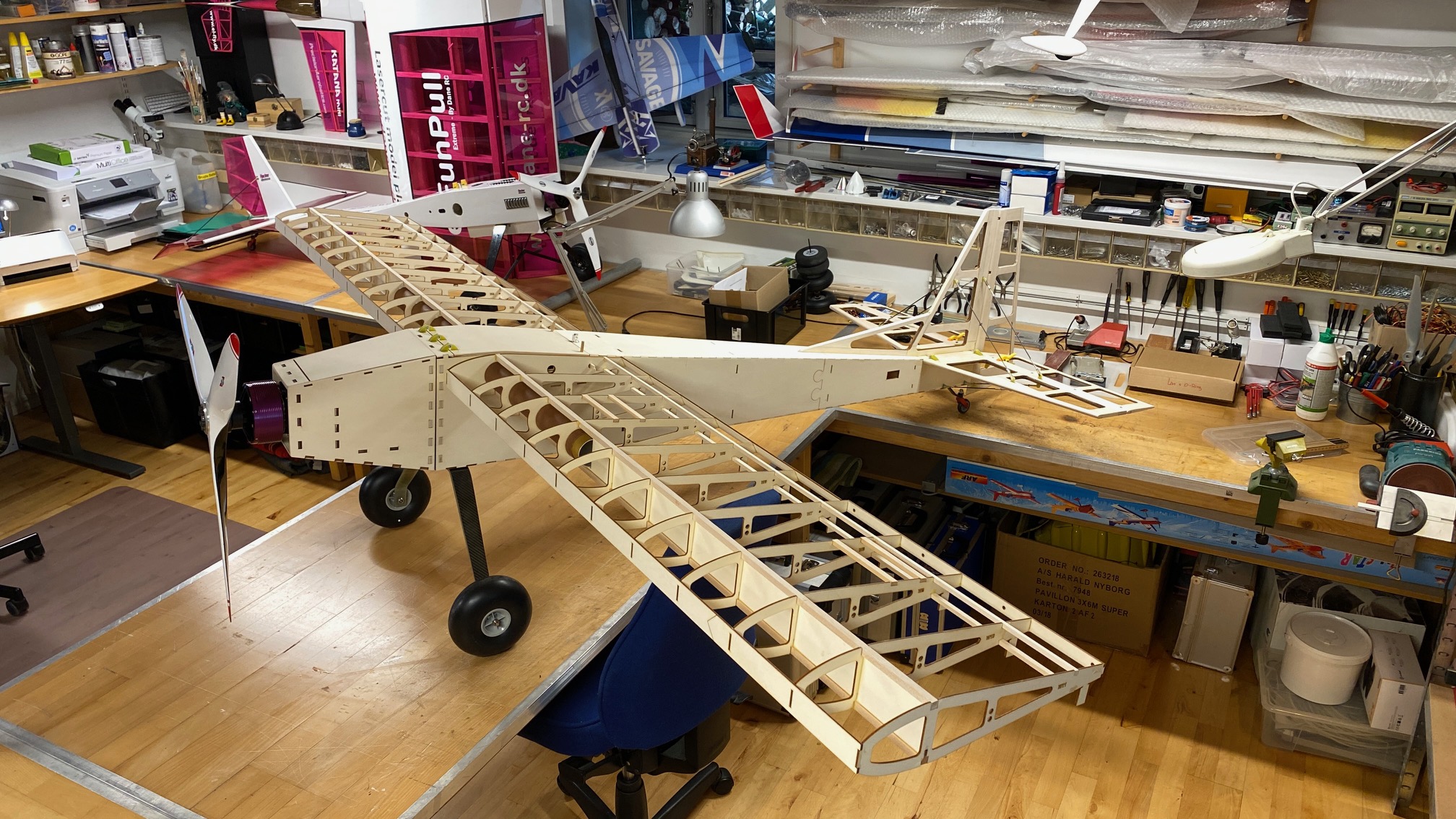

TinusPull V3.1 (update 22.10.2023)

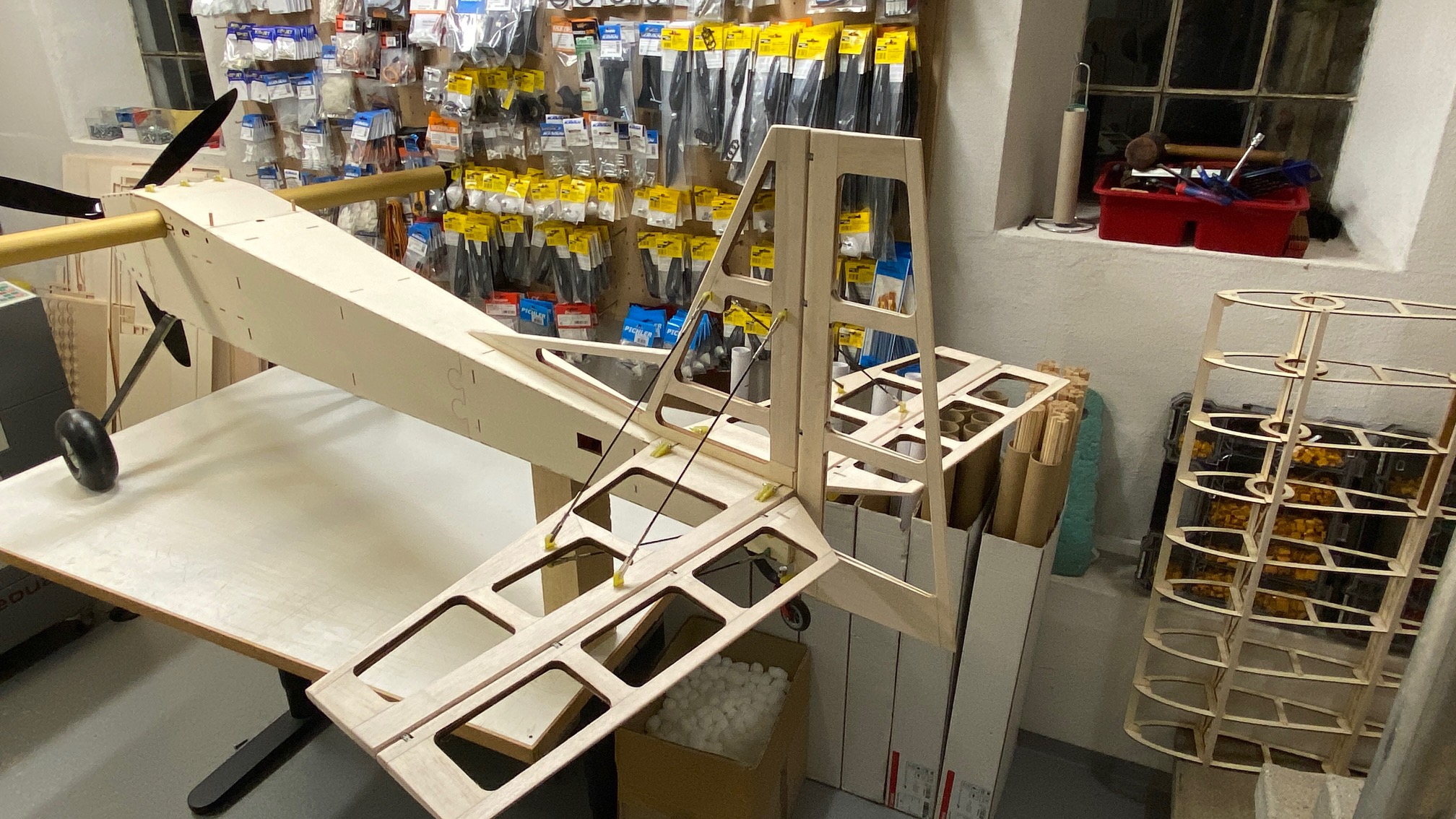

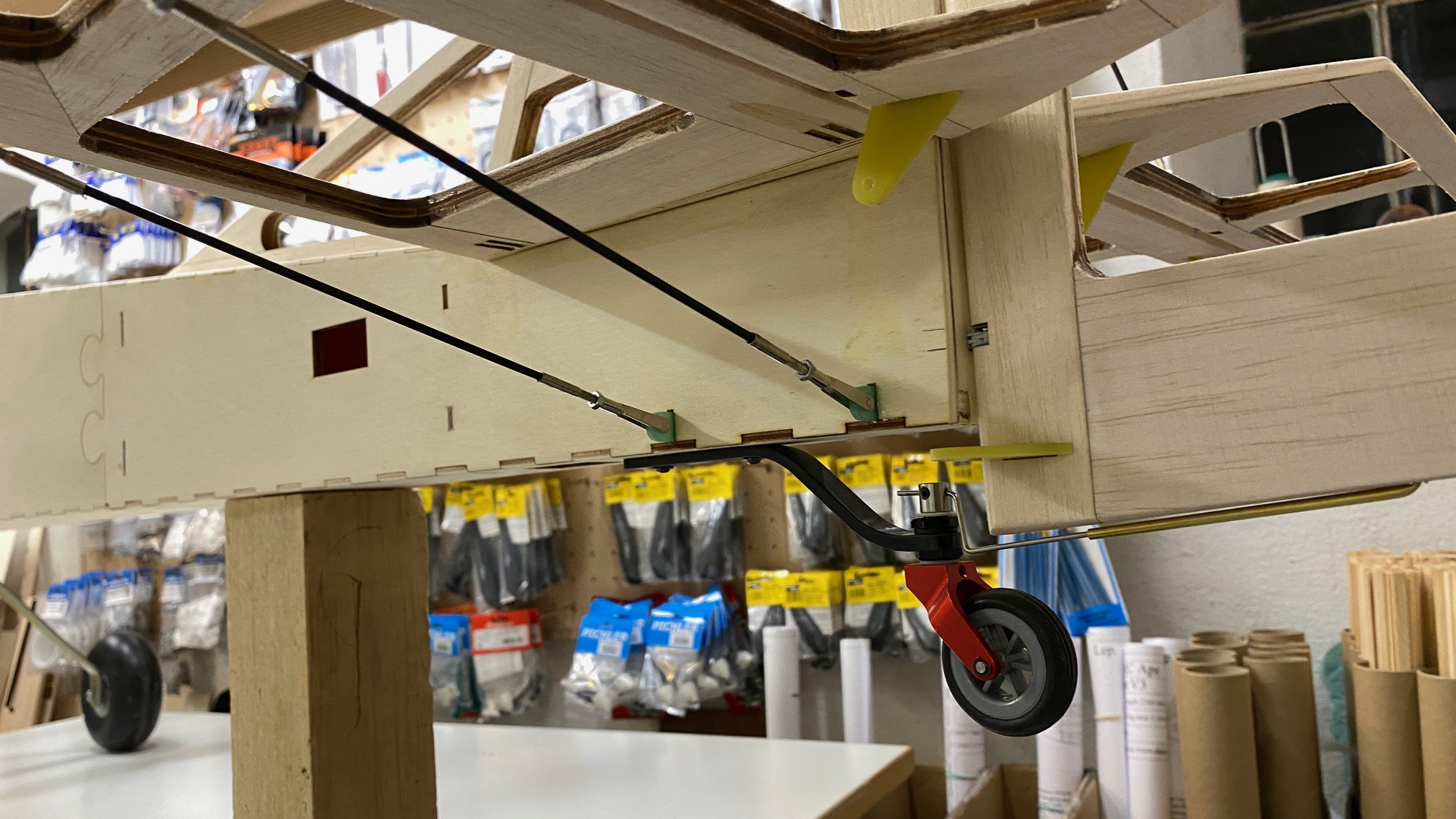

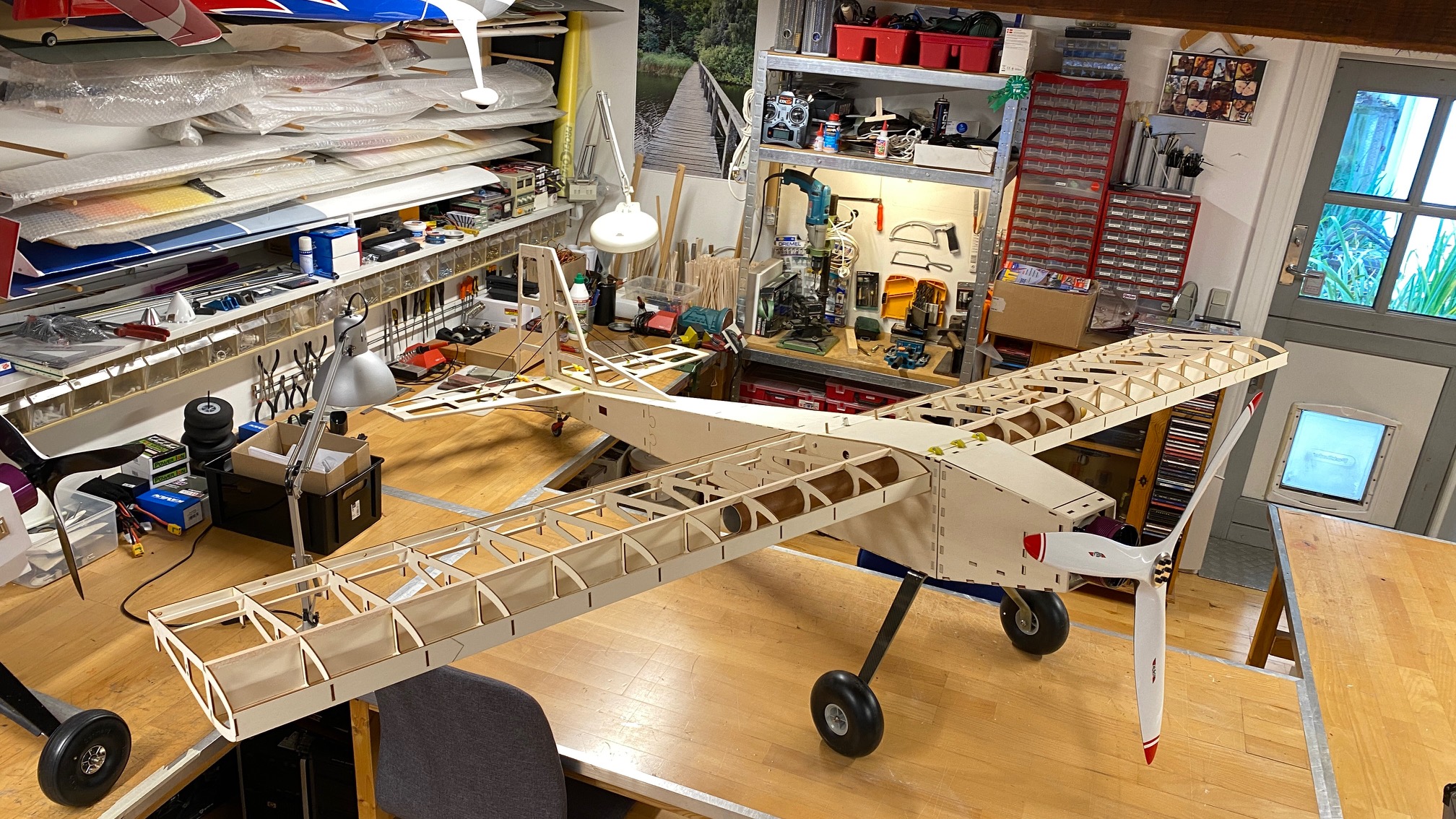

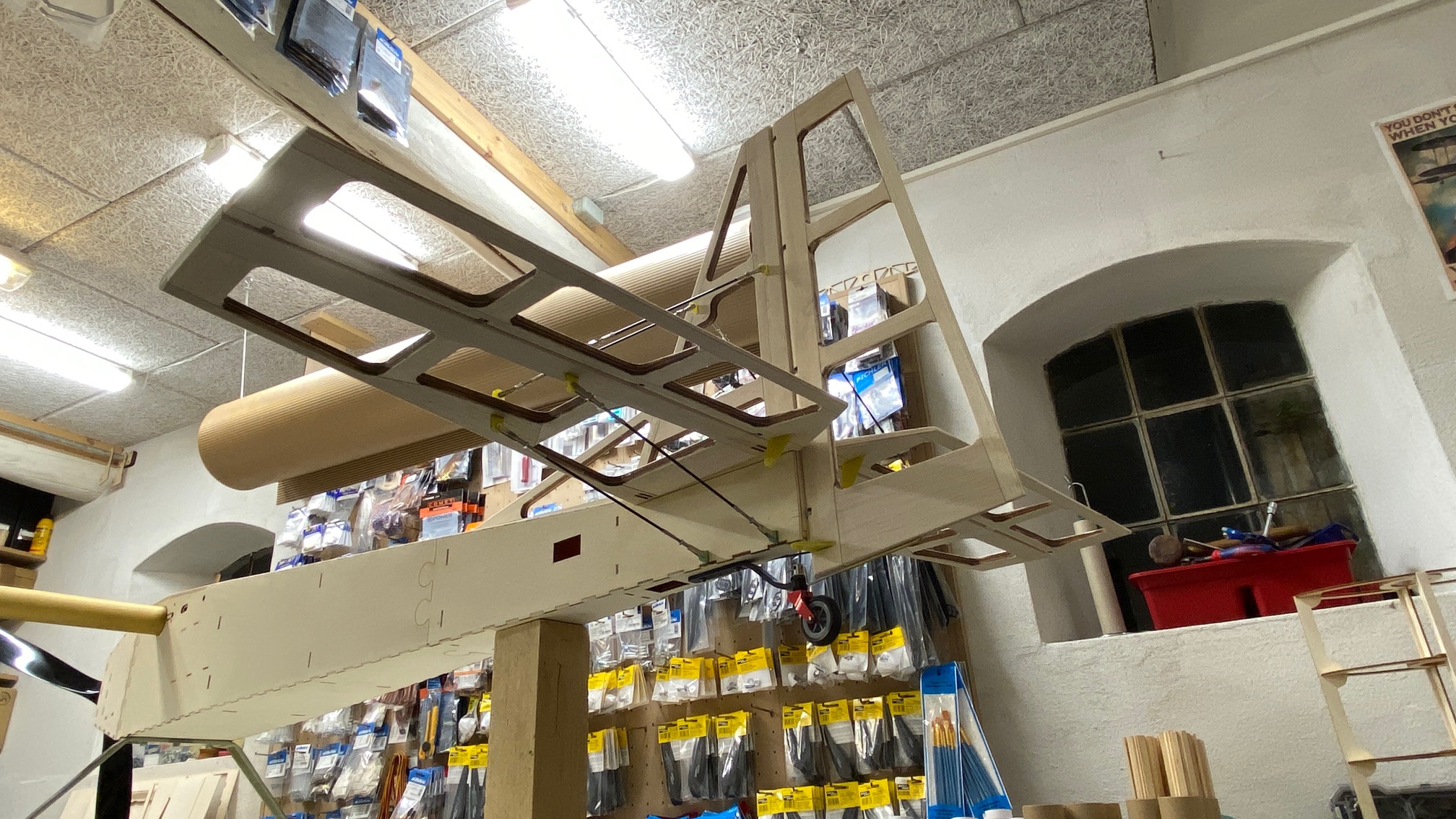

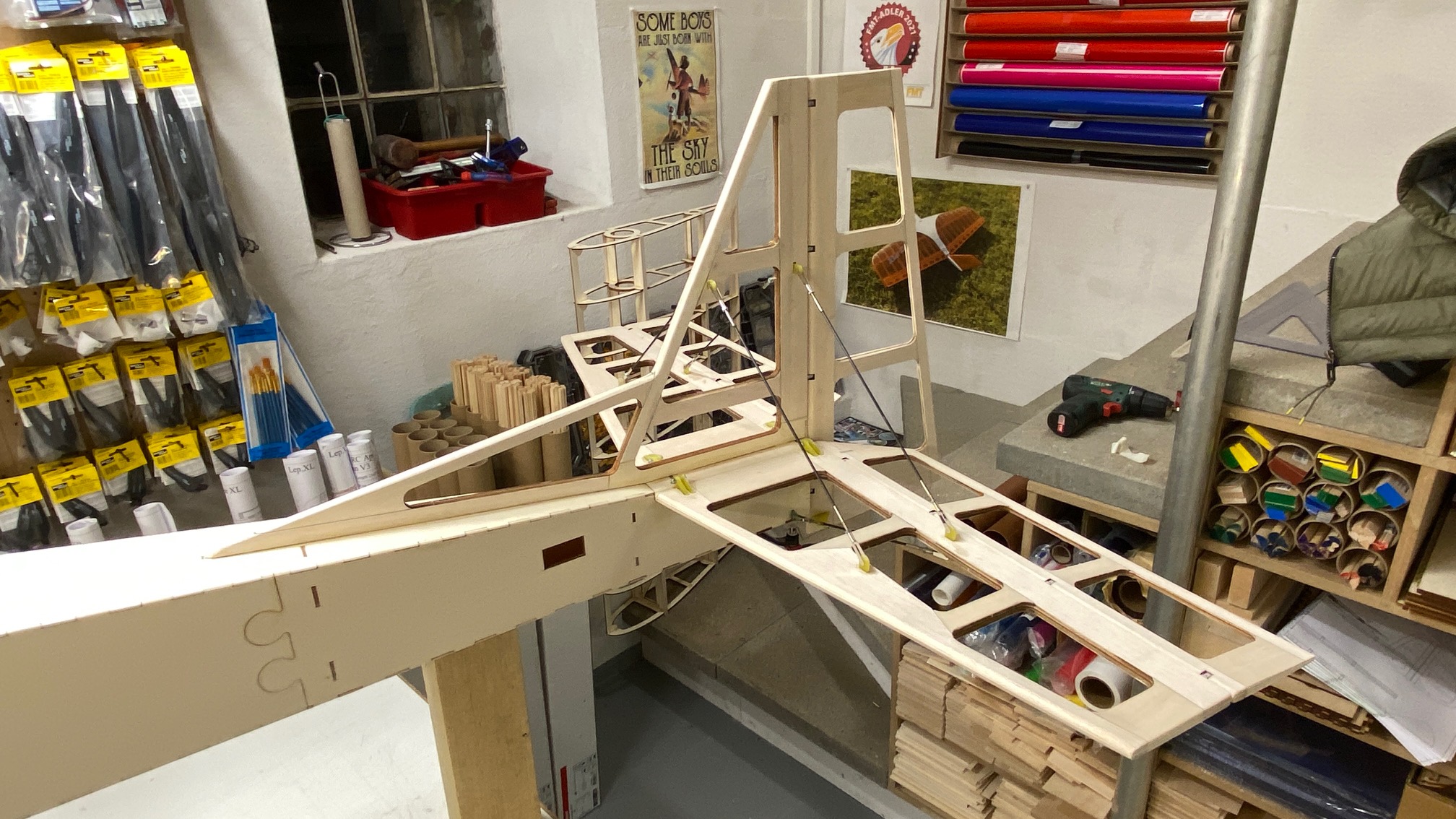

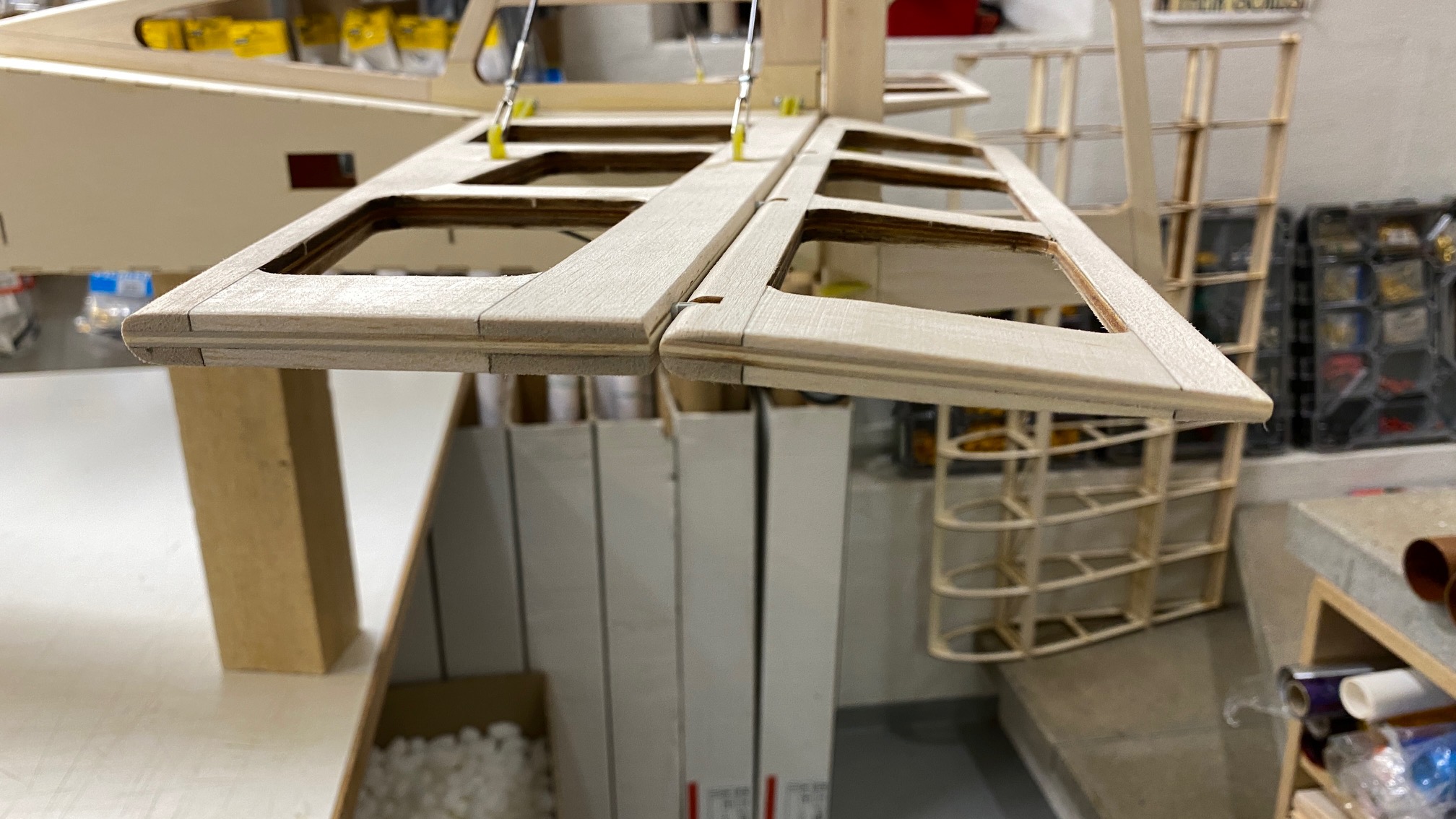

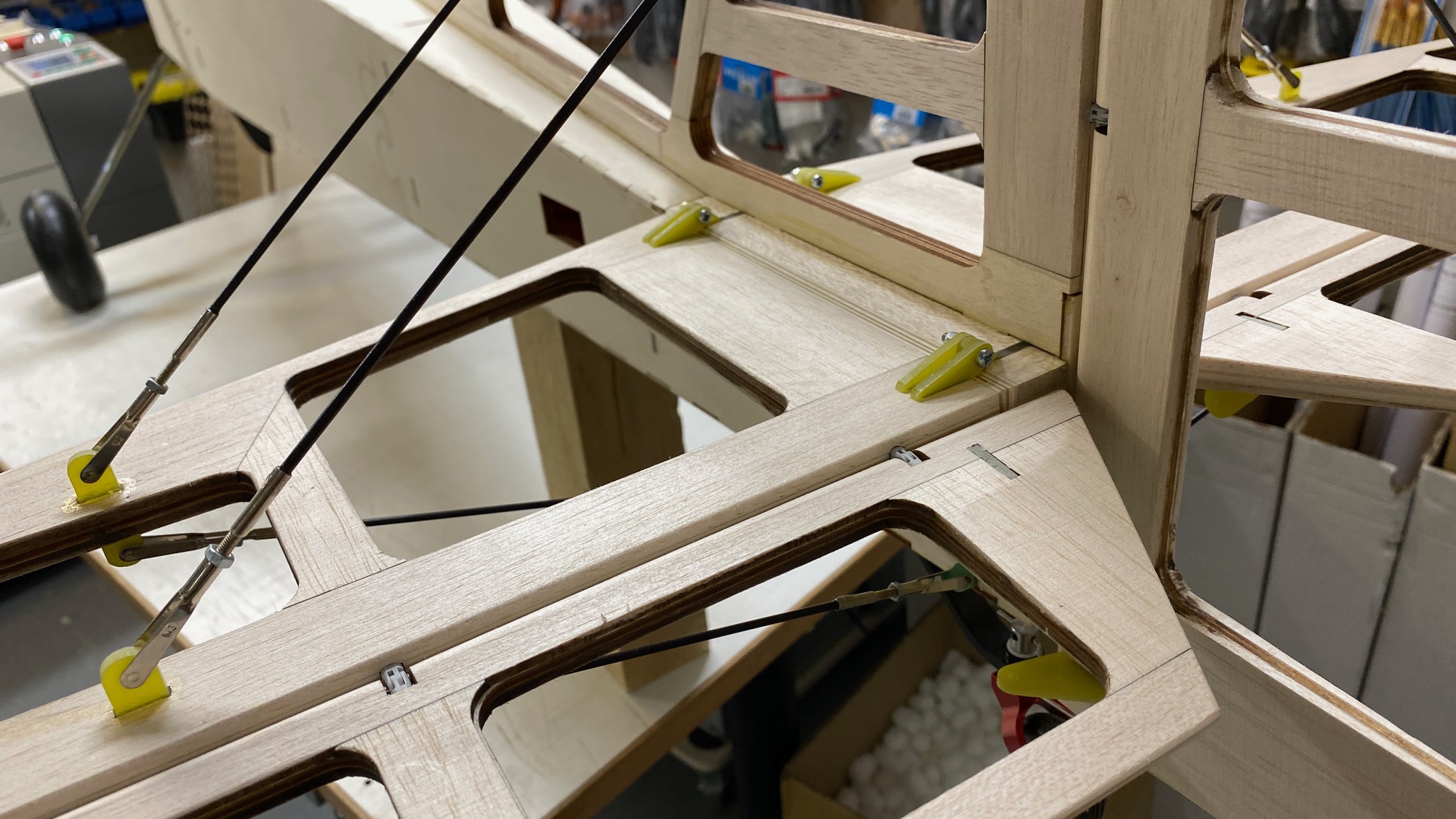

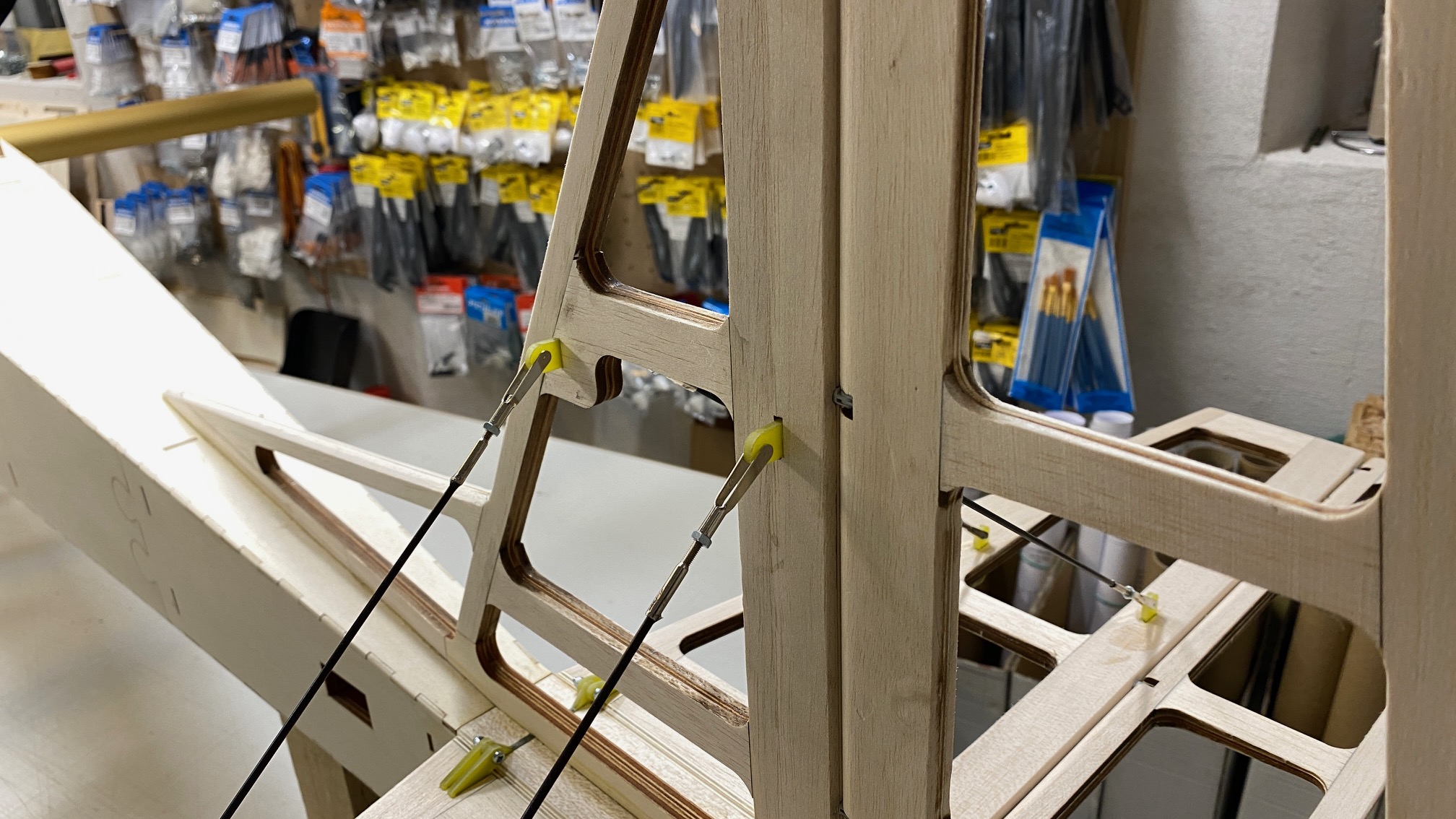

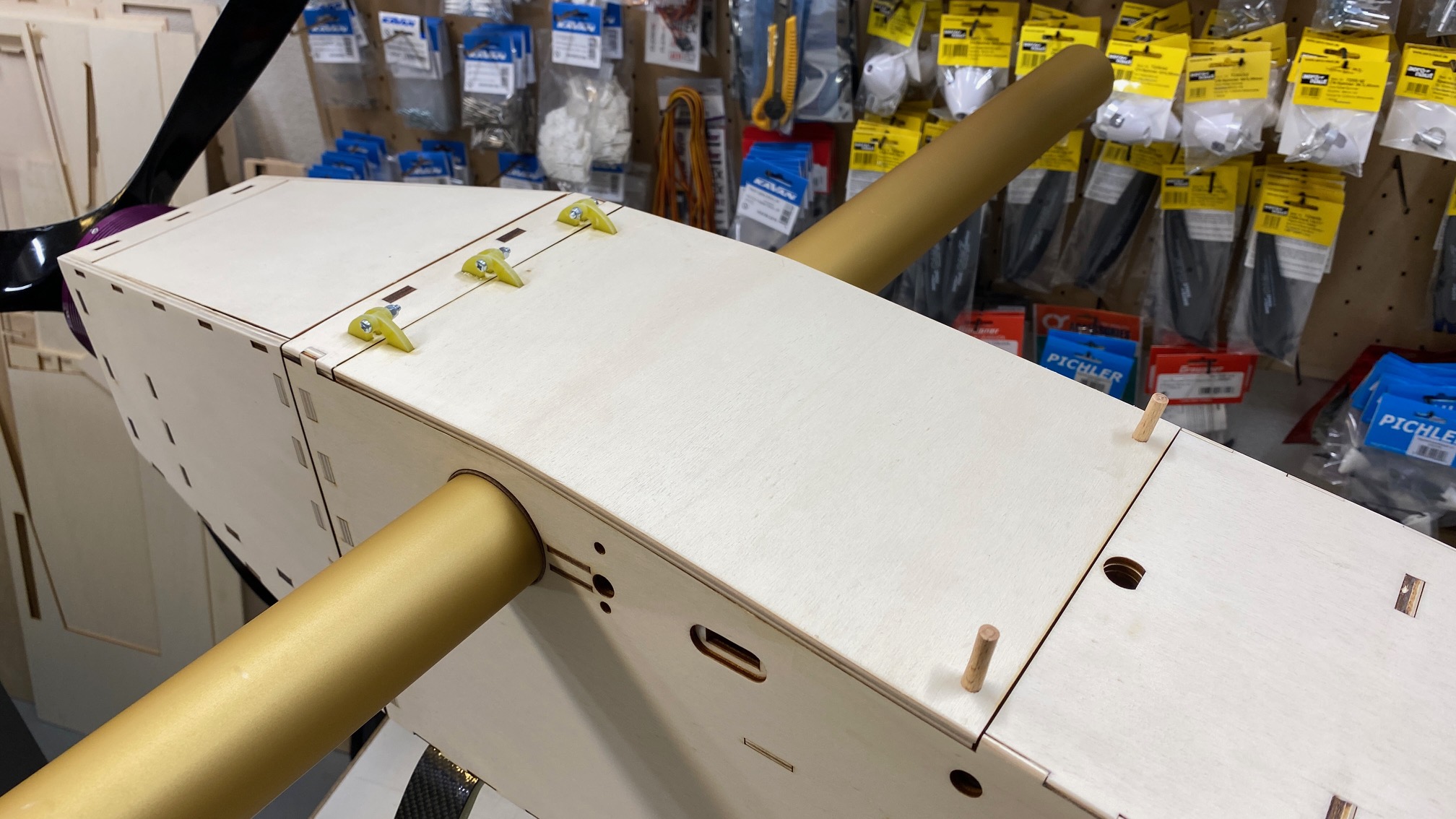

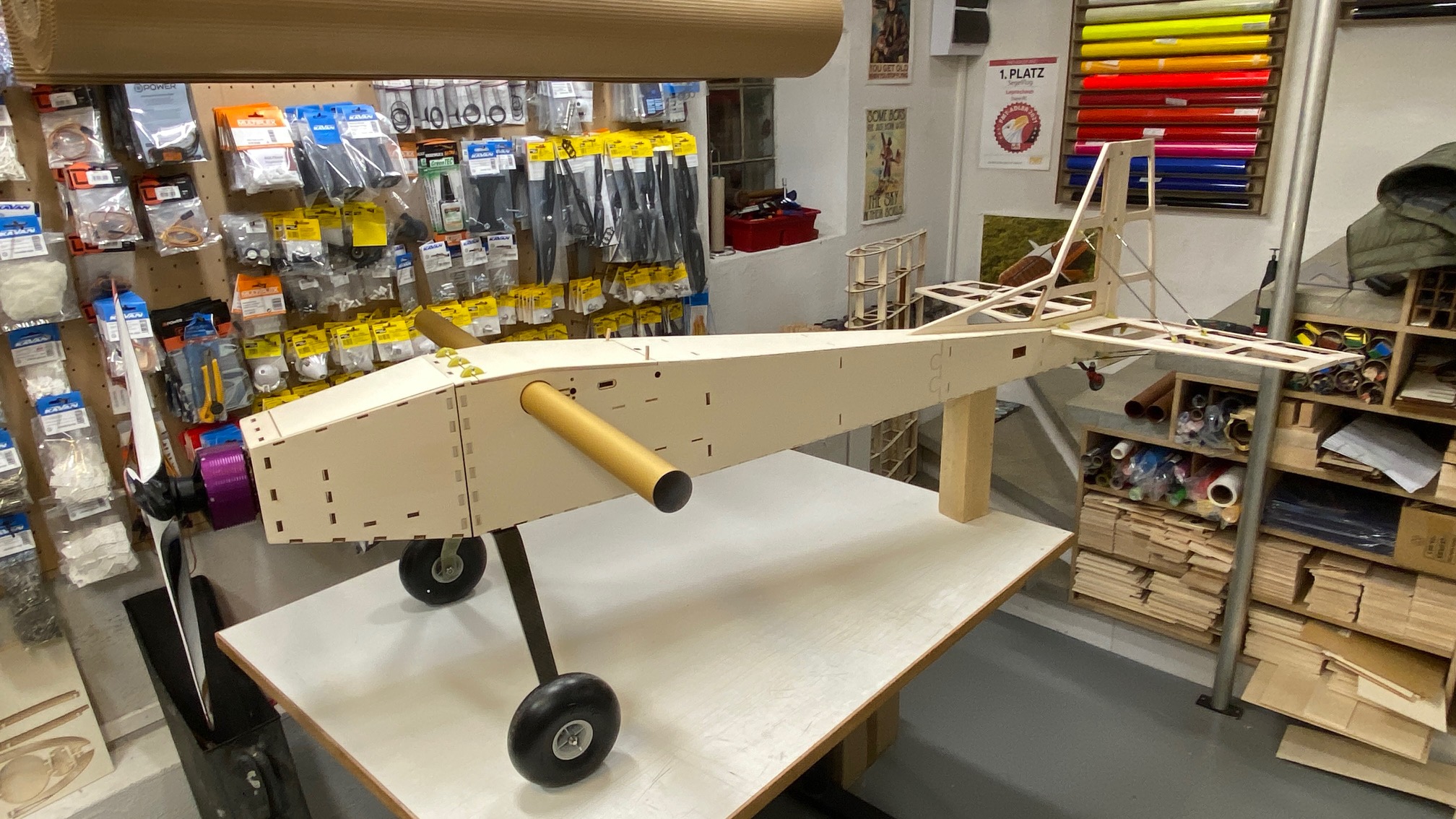

Dane Rc is in collaboration with Tinus, the famous tow boy from DK, in the process of further developing and taking his good and proven tow plane into production, his plane has pulled up hundreds of large gliders both in Denmark and in Germany, and it has turned out that his model is really good at this job

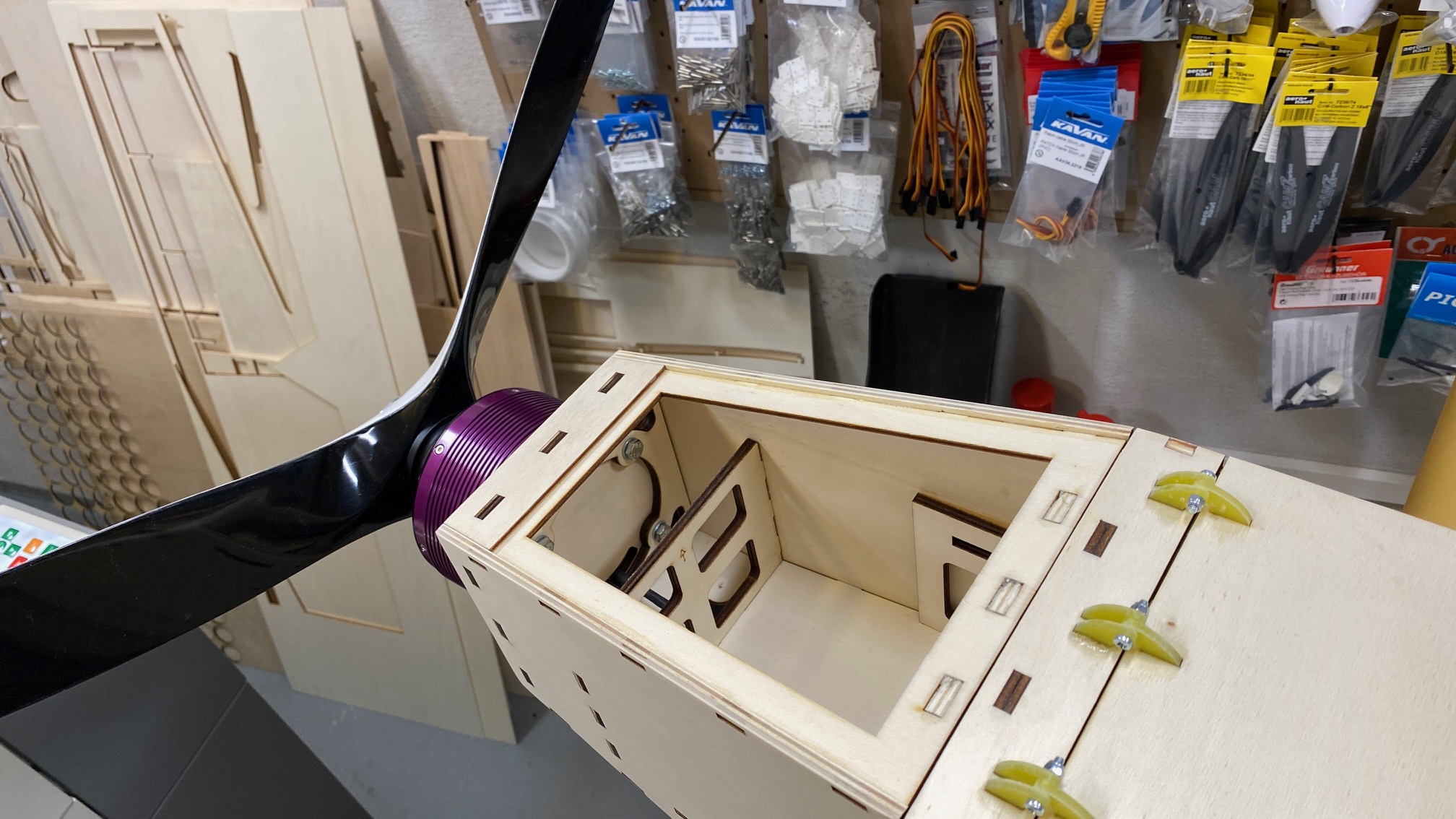

There will be different options for engine sets for the model, as the nose can be replaced, It will fit a large electric setup or different fuel engines from 120 ccm to 250 ccm, depending on the pilot’s wishes

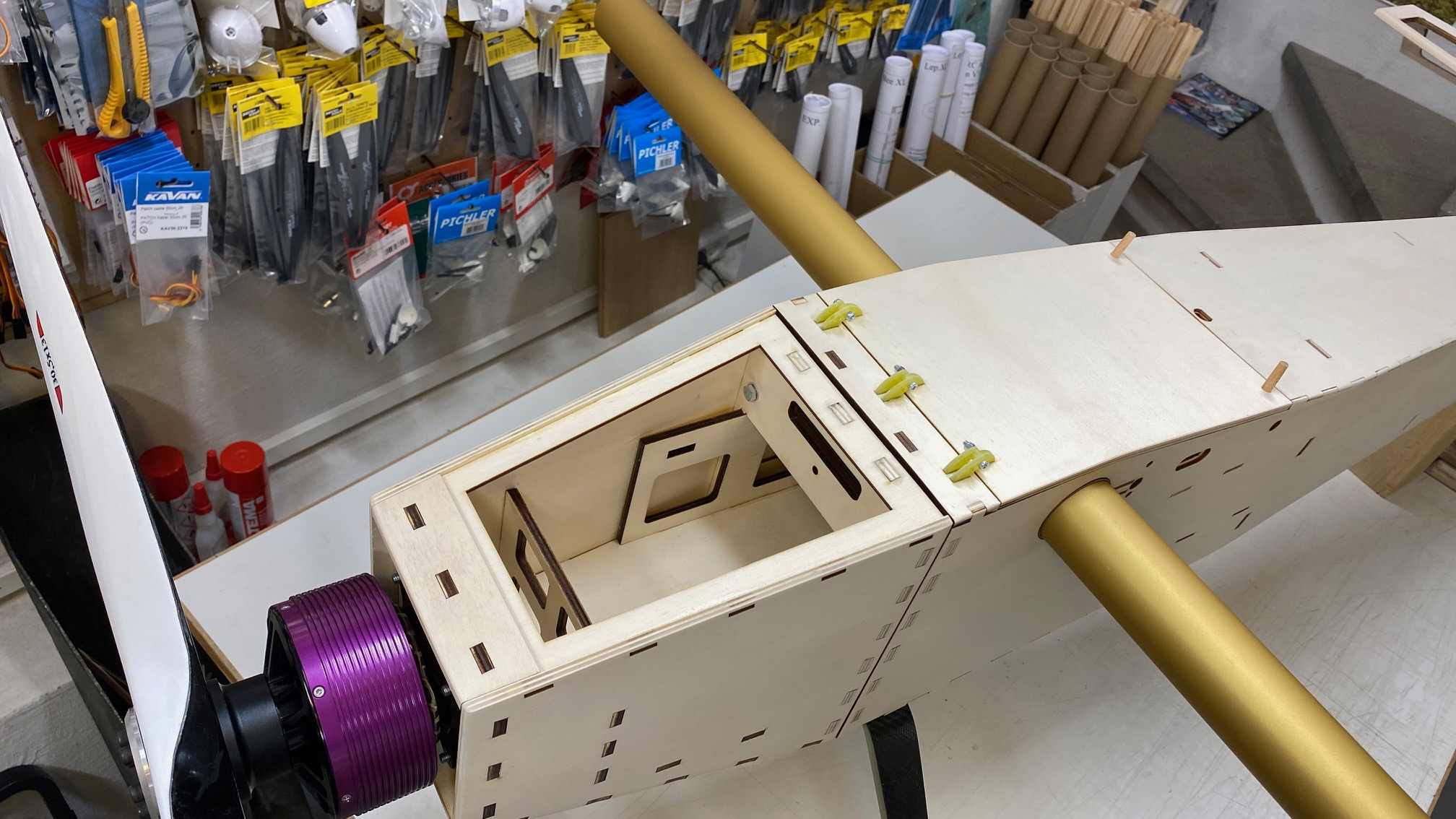

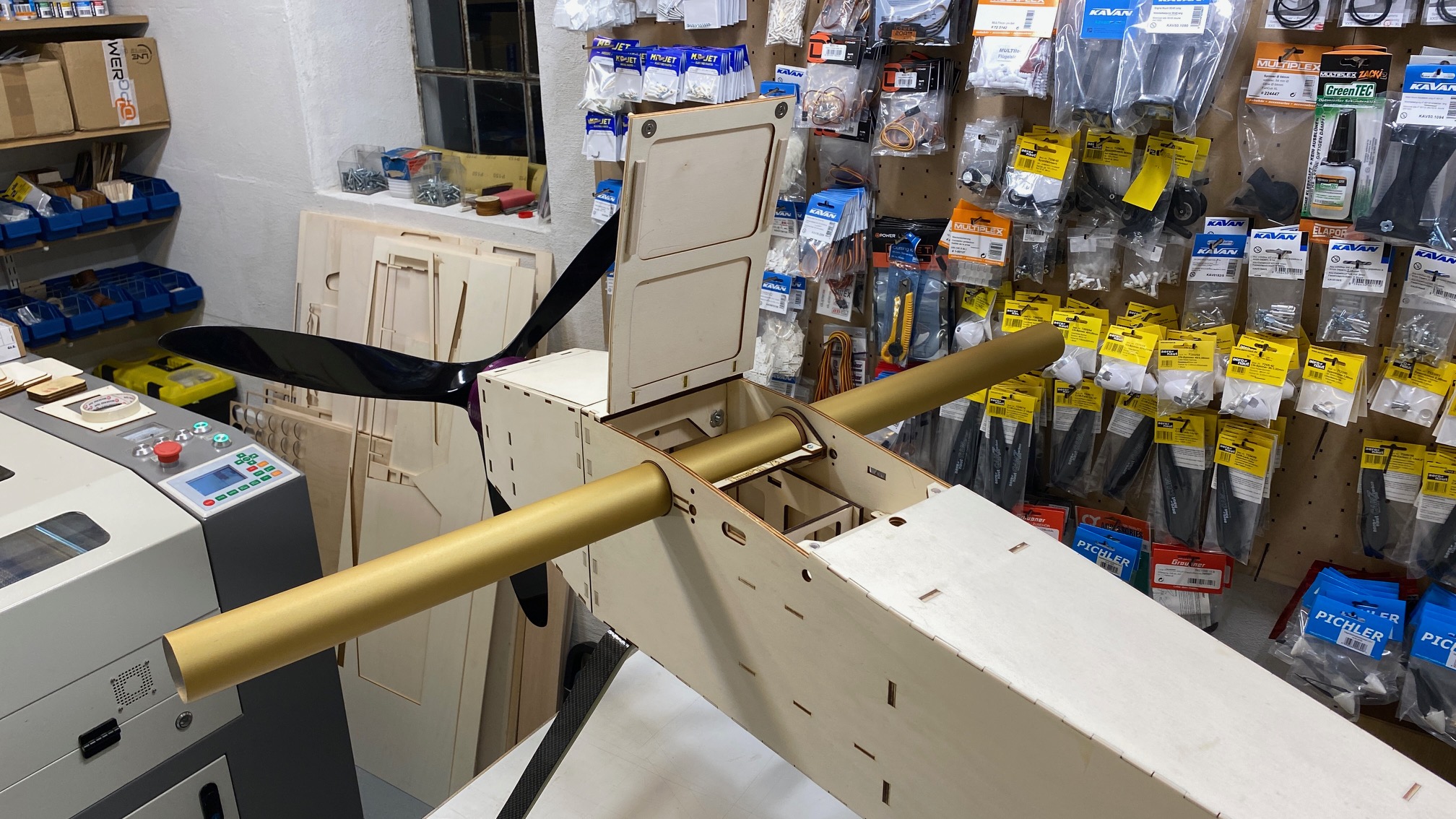

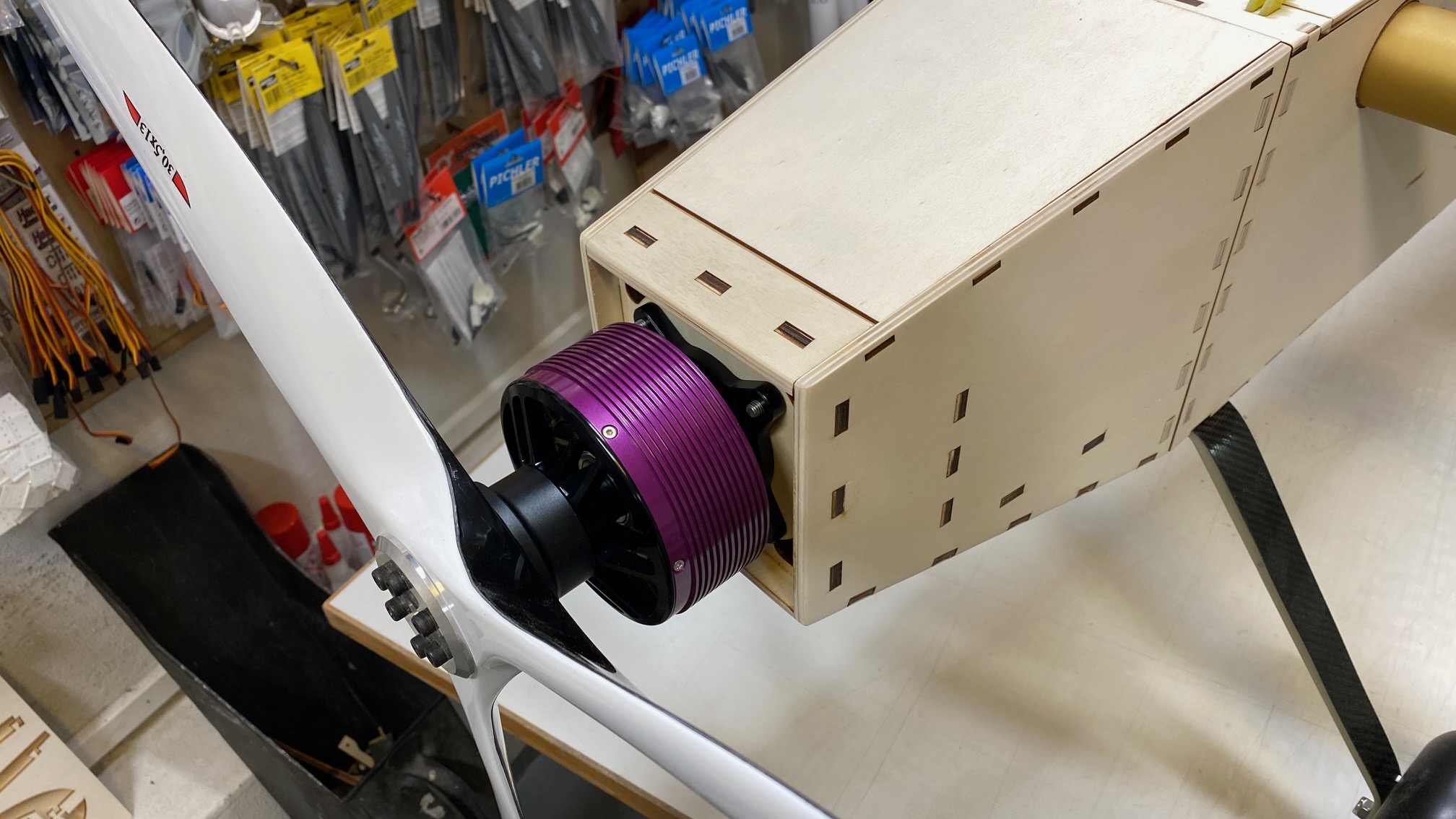

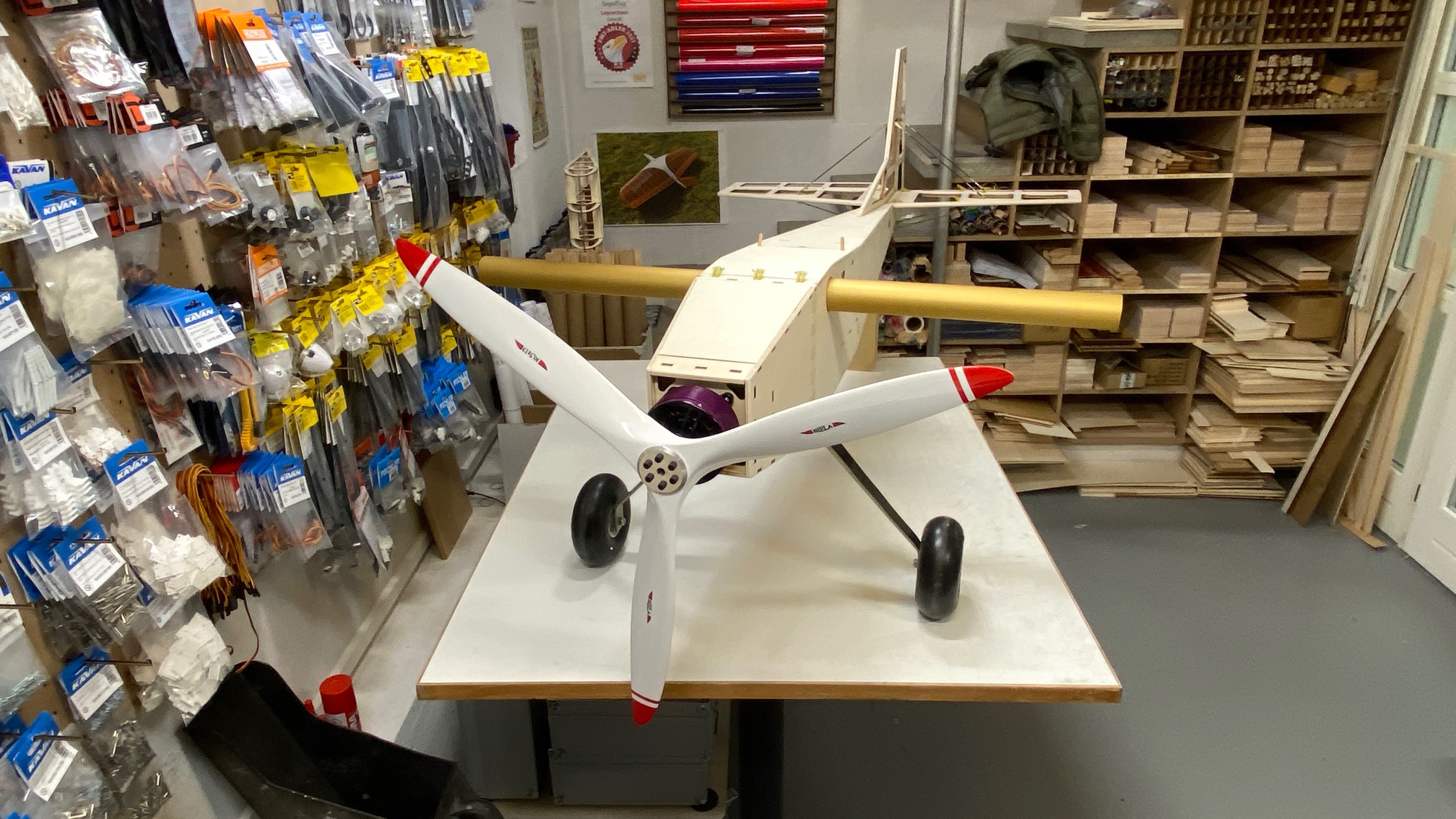

The product type will be electric, but the entire nose can be removed, so it can be changed to fuel if desired, we will also come up with a solution for that setup, not everyone has gone “green” yet. The setup we have chosen is a Hacker Q100-6L kv114 with a Biela 3 blade 30.5×13″, Batteries 2 or 4 x 7C 8000 mah (there is room for 4 pcs.) then 14C with 8000 or 16000 mah, depending on need, That setup provides at least 10.000 watts, enough to pull most gliders

Pictures of Tinus’ tow plane:

Posted on

UMS 5-100 service and testrun

Dane RC has helped a customer get this UMS 5-100 up and running, we’ve cleaned it, put a new gasket kit in the carburetor and tested it with a 3 blade 20*12″ propeller, it gave approx. 5800 RPM. A 3 blade 22×12″ approx. 5400 RPM and a 3 blade 24×12″ gave approx. 5000 RPM, It goes well with all of them, but if it really has to spin then the propeller must not be too big 🙂
Dane RC is able to supply the entire program of UMS motor

https://youtube.com/shorts/qFBIYDZvDwU?si=B9QDHLaVrJXZWUel

Posted on

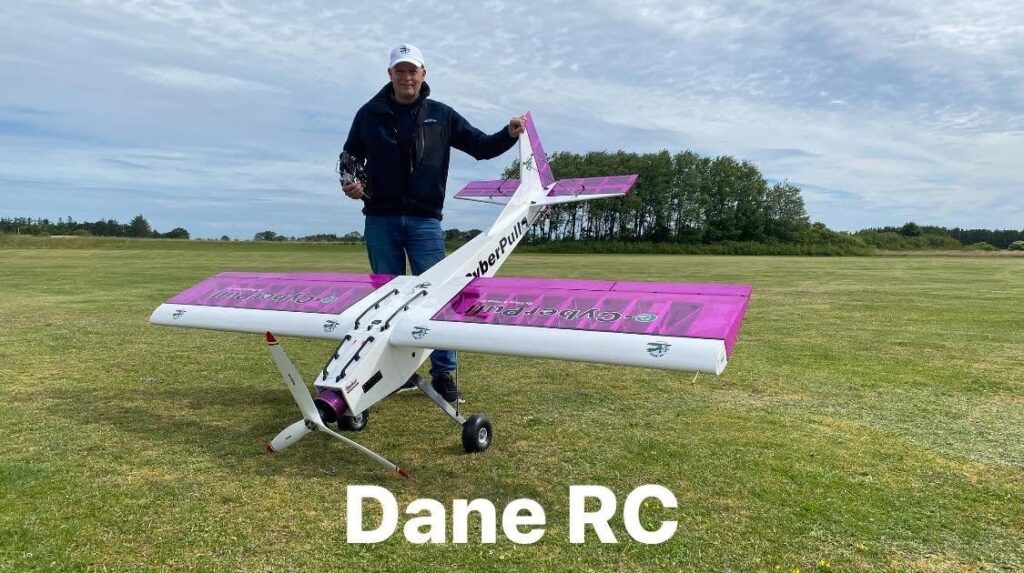

e-FunPull extreme with Q80 Hacker

Dane RC has developed this new fun plane it can also be used to pull up large gliders, so there is also the possibility of making fun flights when waiting for the next glider to be pulled up, it must also be fun to fly :- )
It is equipped with a powerful electrical setup, a Hacker Q80-7L V2 kv 155, a 160 amp regulator, it runs on 12 cells and there is room for 4 batteries of 6 cells 5000 mah in the nose, so you can have 12C of 10000 mah with up

The model data: wing 220 cm – Length 180 cm – weight 11,0 kg with 2 pcs 6C 5000 mah – 4 pcs. 35 kg servo
