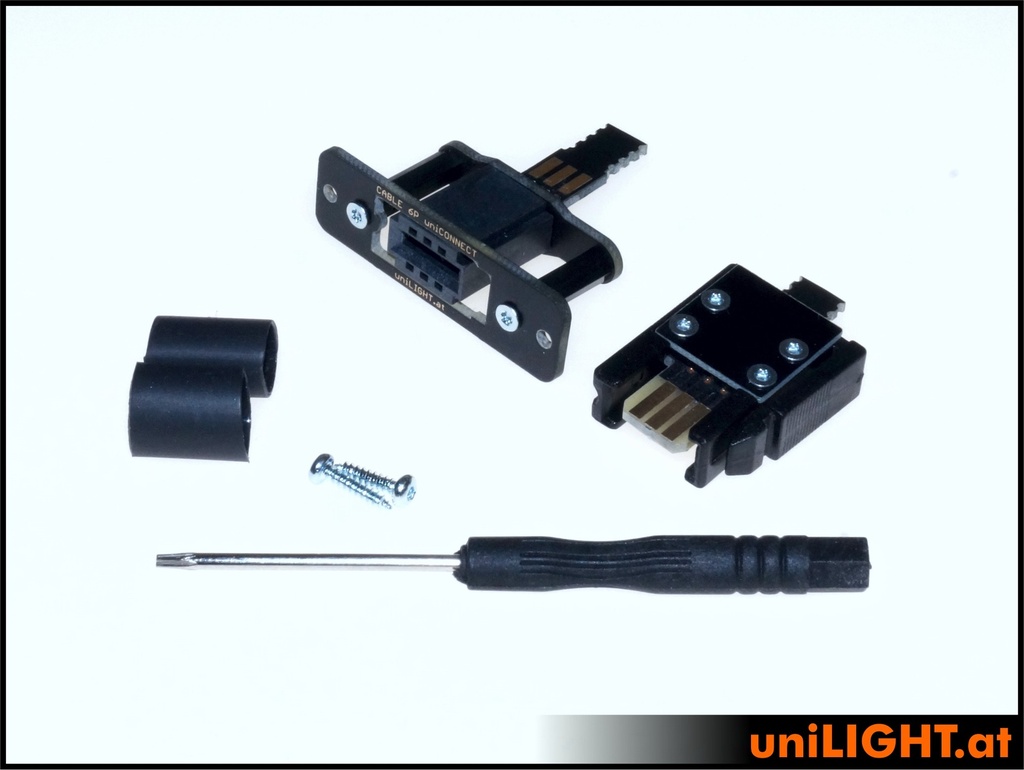

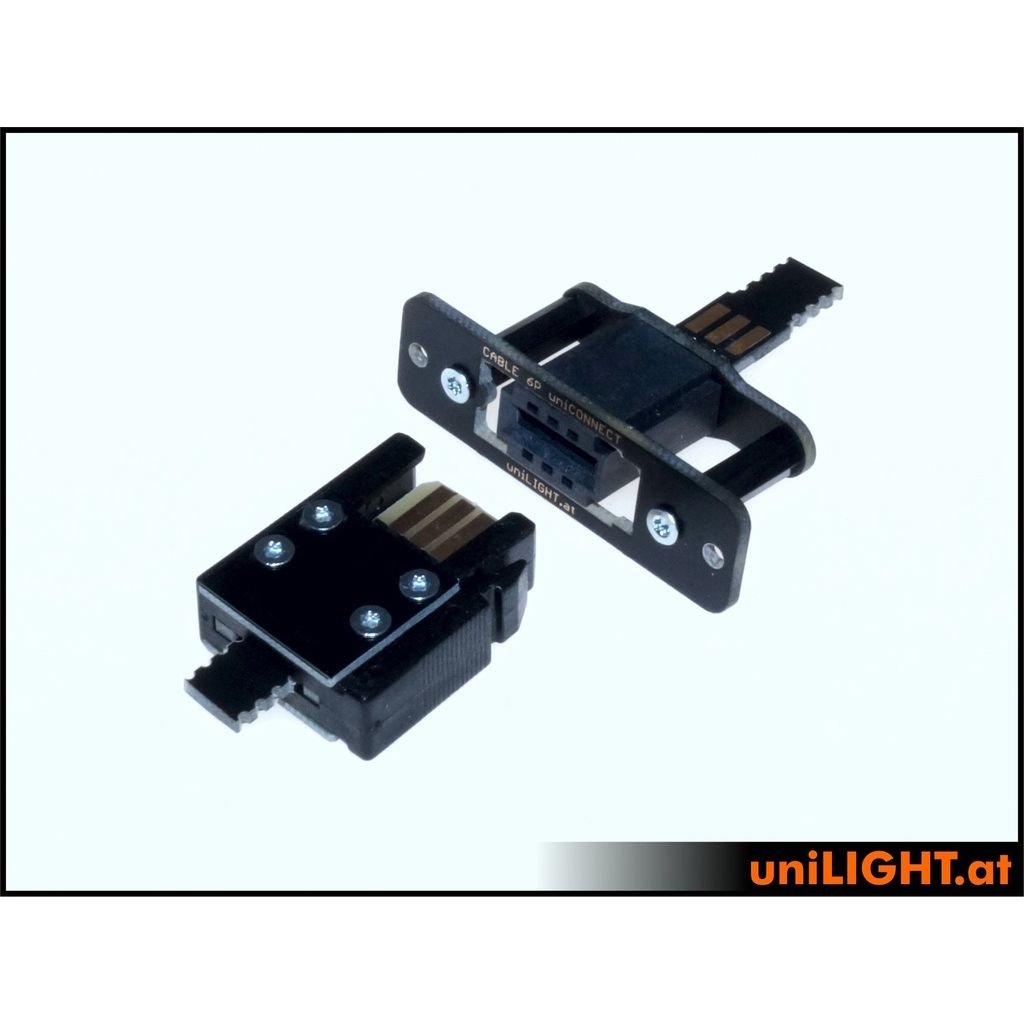

CABLE connector, 3P contacts – KIT – 2 set

The uniCONNECT connector system uses solid blade contacts and highly durable base strips. With this new design, high pin counts in a compact connector can now finally be realized – up to 28 pins. It allows for more than 3000 cycles with load capacities of up to 10A, making it optimal for use in model making.

The blade strips have the advantage that all cables can be reliably and easily soldered without the risk of melting a plastic carrier. Additionally, they include strain relief, locking mechanisms, grips, and kink protection. The contacts on the blade strips are always visible, making it easy to detect any damage or contamination immediately.

The greatest advantage of the system is that it provides double redundancy for important control functions within the connector itself. Therefore, the system distinguishes between primary pins (doubled, for main functions) and secondary pins (single, for lights, landing gear, brakes, etc.), unlike traditional systems that only specify pin counts.

Locking CABLE is a classic connection type where a socket is permanently installed in the fuselage, and the cables from the wing are connected to a plug. This plug is inserted into the socket during assembly and locks in place. The remaining cable is then pushed back into the wing after the plug is connected.
