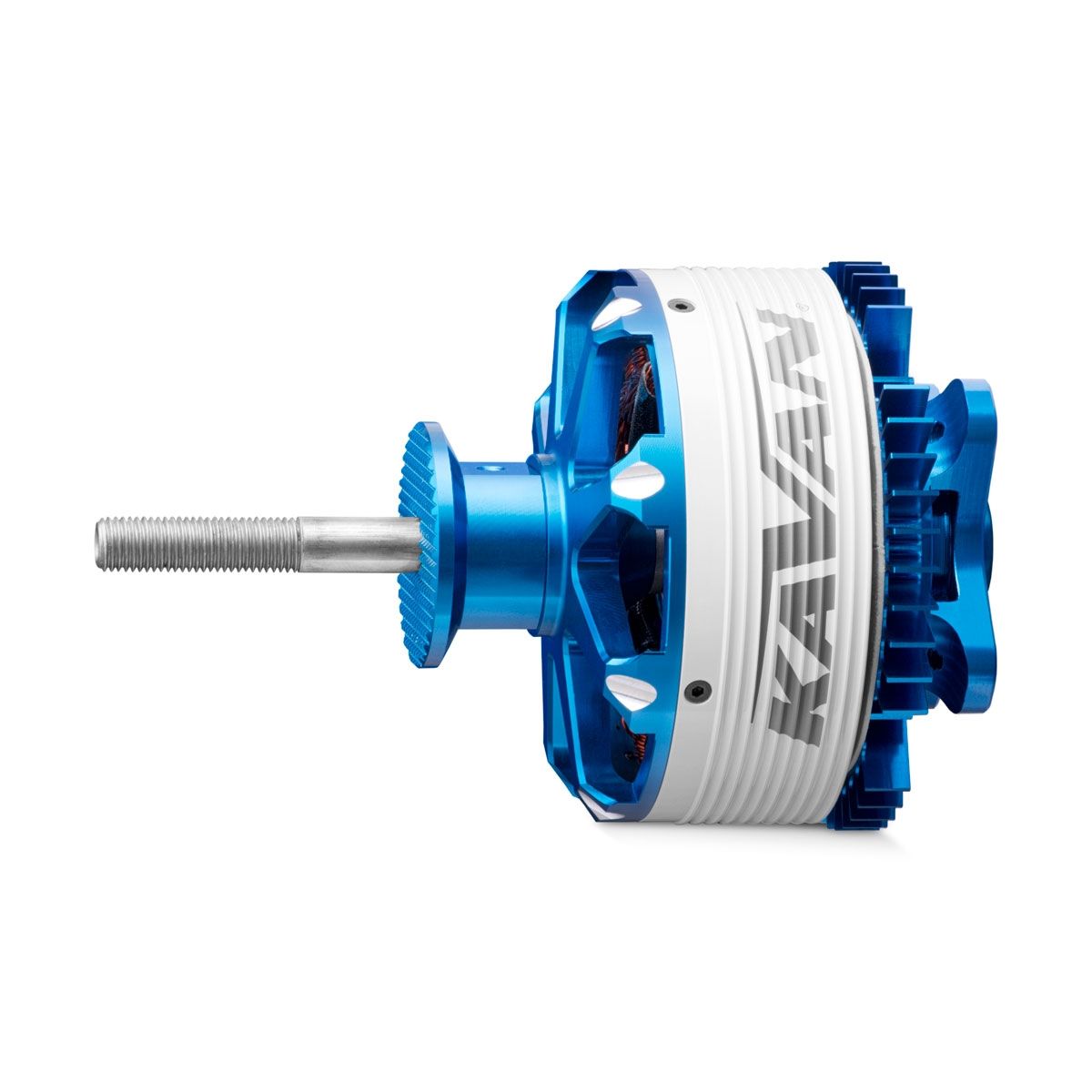

KAVAN Brushless Motor PRO 8050-195

275,60 incl. 25% VAT

Outrunner brushless electric motor for model aeroplanes: glider 12000g, trainer 9000g, acro 6500g, 3D 5200g, KV195 RPM/V, input voltage 10-12S Lixx. 8.0mm shaft. Alternative designation based on the stator dimension: 7020-195.

KAVAN PRO series motors are high performance 14-pole brushless outrunners. State-of-the-art design, hardened steel shafts, high quality ball bearings, High grade material used for stators and rotors ensure long lifetime and unbeatable performance and high efficiency. KAVAN PRO series motors are low revolution/high torque electric motors capable of swinging large diameter propellers without need for a gearbox.

KAVAN PRO 8050-195

KAVAN PRO 8050-195 is a 28-pole brushless motor for model aeroplanes up to 12 kg all-up weight powered by 10-12S LiPo flight battery pack. It is great for scale and aerobatic models originally designed for 2.1 (35 ccm) two-stroke petrol (gas) engines.

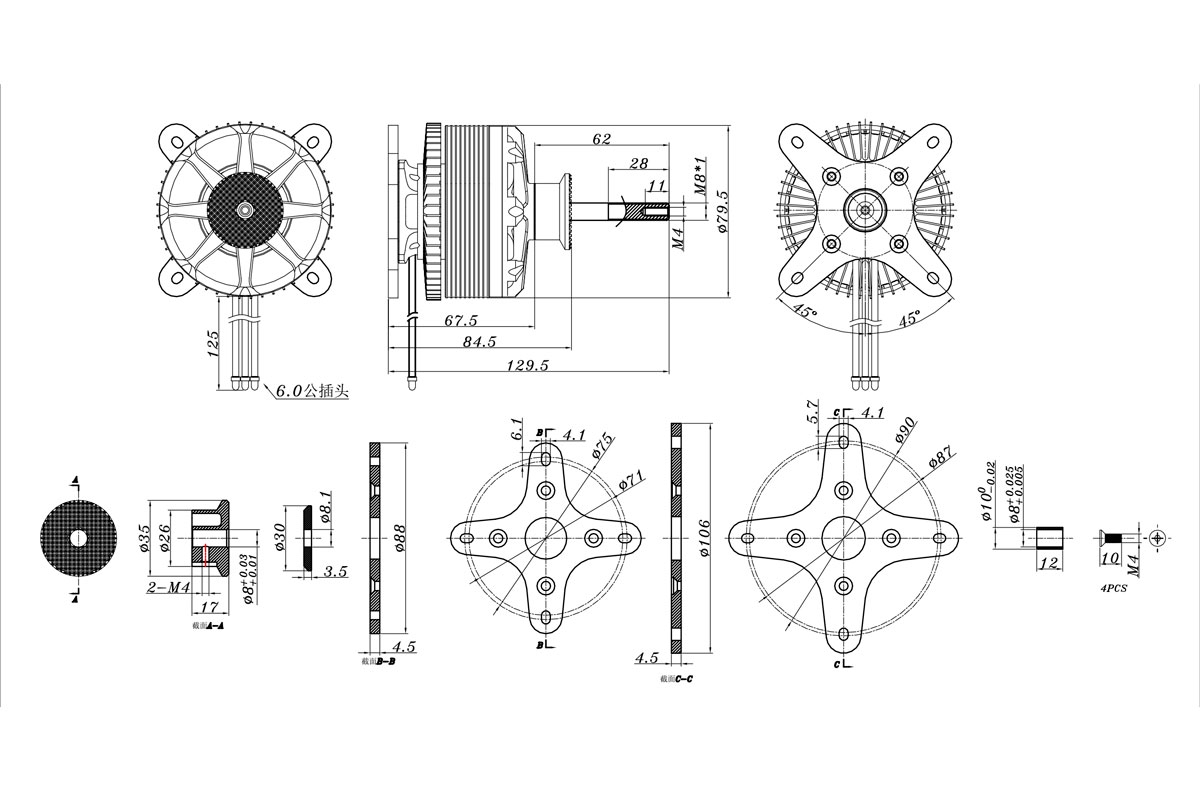

Motor installation: KAVAN 8050-195 has been designed for the radial mount installation. Use four M4 steel screws; the firewall should be made of 8.0-10.0 mm plywood.

ESC: Be sure the ESC you are using actually is designed to work with multi-pole motors (many regular ESCs designed with 2-14pole motors in mind might not work properly).

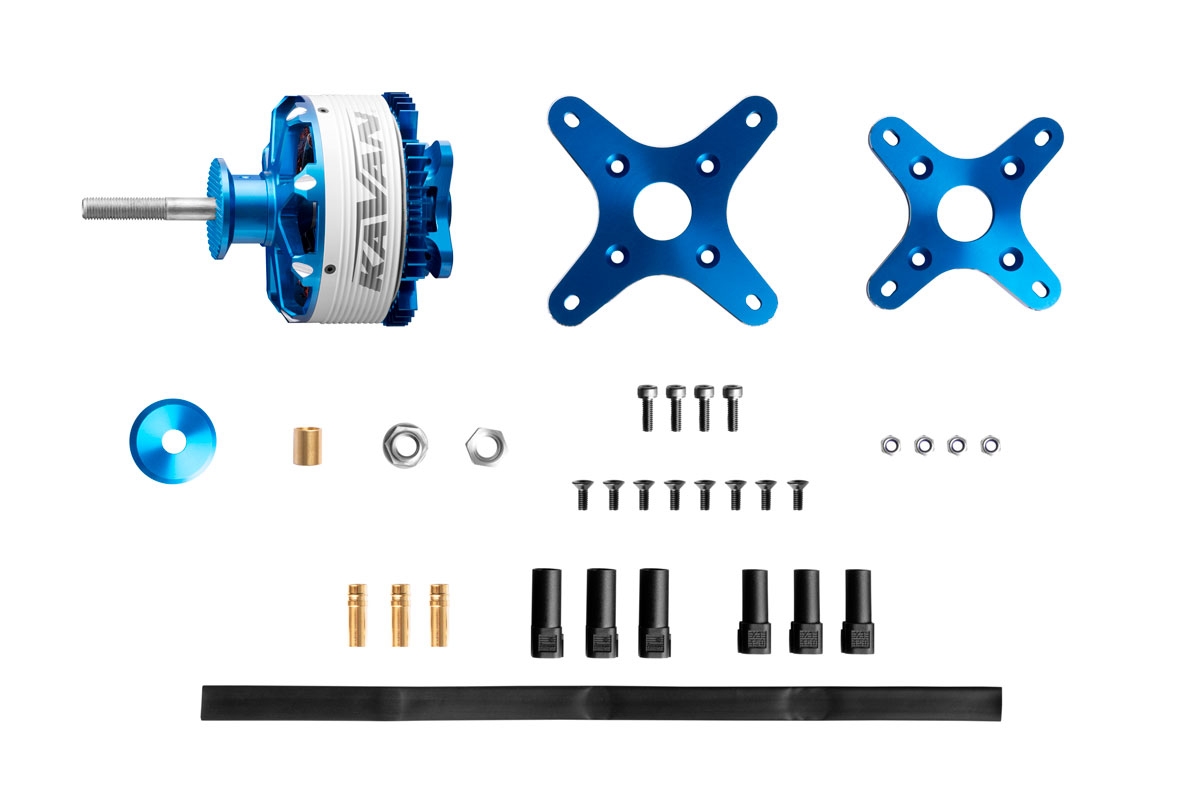

The motor set contents: KAVAN PRO 8050-195 motor w. cables (6 mm gold-plated connectors), radial mount set w. two mounting crosses (Ø71/75 a Ø87/90 mm). The full instruction manual can be downloaded here: KAVAN PRO 5050+ Brushless Motors Instruction Manual

If the motor are on backorder, the normal delivery time is 3-5 days

Product is in Backorder

Euro (€) - EUR
  • Euro (€) - EUR
  • Danish krone (kr.) - DKK
SKU: 00341-136 Category:

Description

Powering LiXX cells 10 – 12
RPM/V [ot./min/V] 195
Max. power (30 s) [W] 4400
Internal resistance [mOhm] 18
Open-circuit current (při 10 V) [A] 1.5
Max. peak current (30 s) [A] 120
Diameter [mm] 79.5
Length [mm] 50
Length celková [mm] 129.5
Shaft diameter [mm] 8
Weight [g] 740
Poles count 22
Timing [°] 15 – 25
ESC [A] 120 – 160
Weight of glider (up-to) [g] 12000
Weight of trainer (up-to) [g] 9000
Weight of acrobat (up-to) [g] 6500
Weight of 3D (up-to) [g] 5200
Recommended Propeller (12S) 20×9”-21×10”

Additional information

Weight 1 kg
