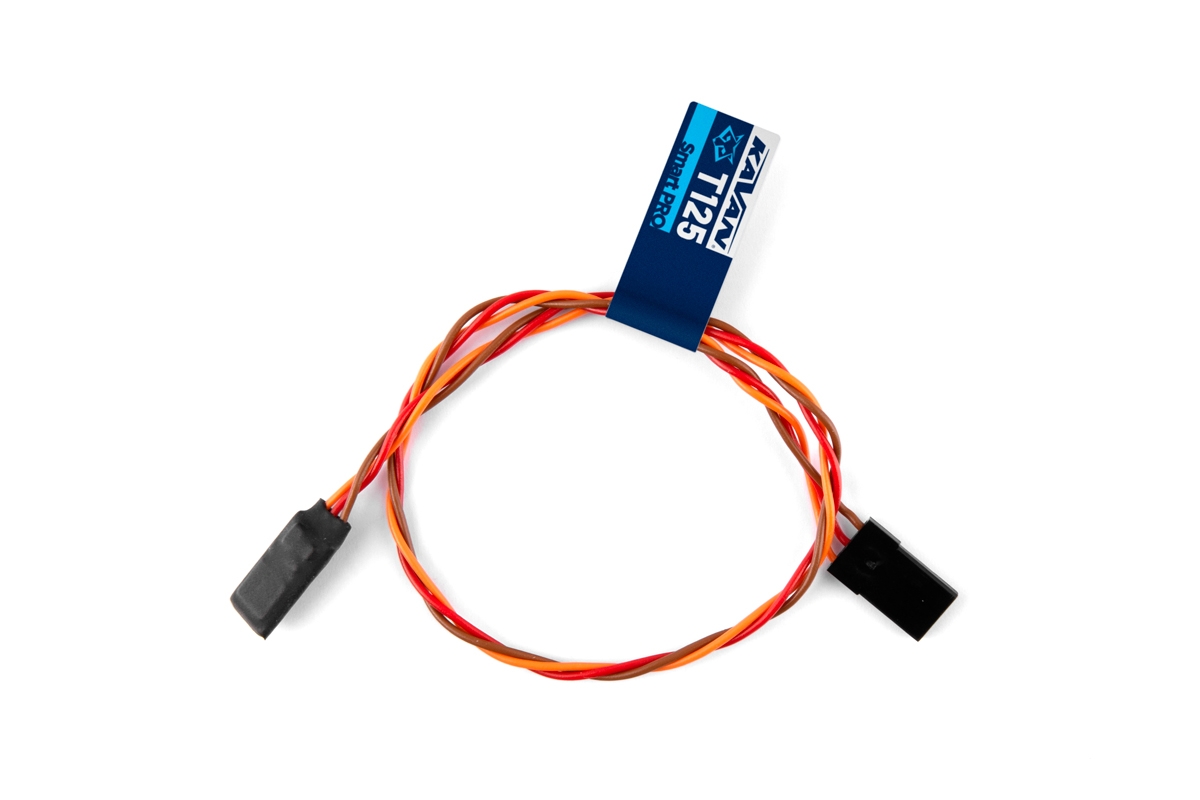

MAV Sense Motor temperature sensor

23,00 incl. 25% VAT

A miniature telemetry temperature sensor for temperature measurement of electric motors; for the IBEX line of MAV Sense ESCs. Compatible telemetry systems: Futaba S.BUS2, JETI Duplex EX, Multiplex MSB, Graupner HoTT, Powerbox P2Bus. Setting up with transmitters, Jetibox or MAV Sense PC USB interface. Dimensions 21.5x10x4mm, weight 1g.

If backorder, the normal delivery time is 3-5 days



3 in stock

Euro (€) - EUR
  • Euro (€) - EUR
  • Danish krone (kr.) - DKK
SKU: 05062-204 Category:

Description

T125ID is a tiny temperature sensor that supports multiple telemetry protocols. The T125ID is able to communicate with the IBEX controllers as it offers direct temperature readings of the motor temperature to the controller. It also contains some memory space for predefined motor parameters. In case you don’t want to play with the IBEX ESC settings, use the T125ID sensor to store the motor parameters. As a result, the controller will read the motor settings and adjust its own behavior.

MAV Sense products are designed and manufactured in the Czech Republic

  • Small dimensions. The sensor is connected directly to the IBEX ESC port.
  • Temperature min/max values are logged.
  • Automatic telemetry detection: Duplex EX, Hott, MSB, S.Bus2, P2Bus.
  • Configurable alarms on high temperature.
  • Configuration through the transmitter or MAV Manager PC software.
  • Firmware updates.
  • Communication with the IBEX controllers.

The set contents: T125ID temperature sensor, instruction manual.

Power supply [V] 3.5 – 12
Length [mm] 21
Width [mm] 10
Height [mm] 4
Weight [g] 1







Additional information

Weight 0,2 kg
