Before the assembly instructions begin, here a small preview of how the model should end up.

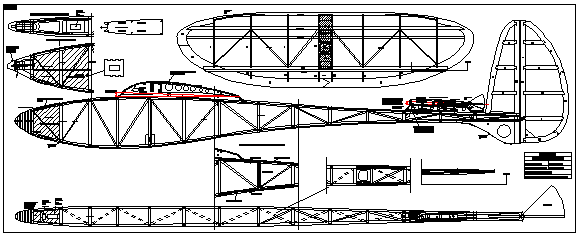

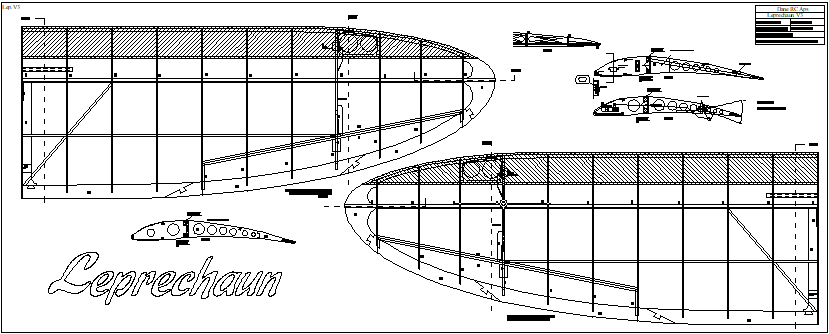

Leprechaun V3

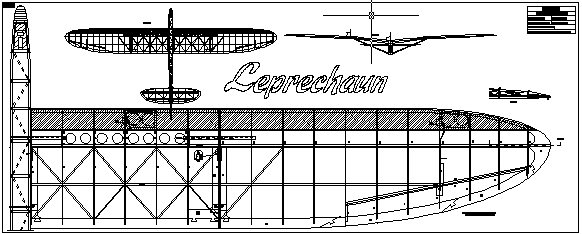

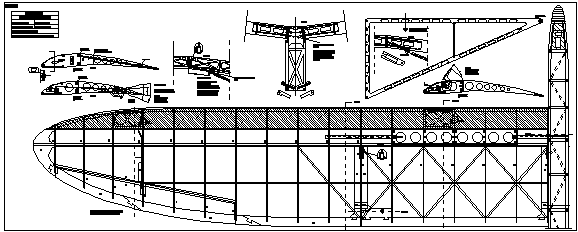

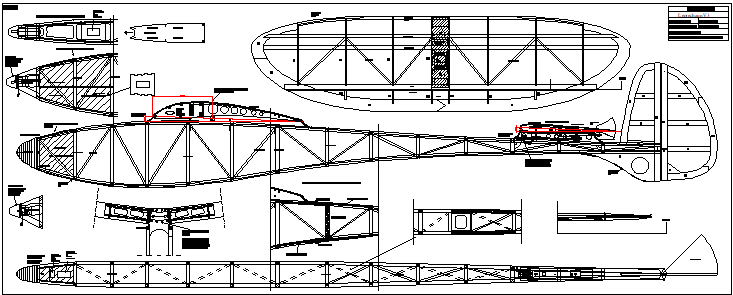

Leprechaun XL

The Leprechaun V3 + XL building kit comes in two different sizes, and differs only by a small amount of wooden parts. The “Full building kit” includes all the wood you needed for the assembly, while the “Light building kit” only contains the laser cut parts. The light building kit allows you to save a little money, by supplying wood of your own choosing.

Full building kit V3

• Lasercut parts in plywood and balsa
• Drawing of plane 1:1
• Extra wooden parts (balsa sheets, sticks etc. FULL KIT)
• Balsa sheets: 6 pcs. 1,5 mm – 1 ps 2,5 mm – 1 ps 3,0 mm
• Balsa sticks: 6 pcs 10×9 mm – 9 pcs 10×10 mm – 18 pcs 5×10 mm – 10 pcs 6×6 mm – 12 pcs 5×5 mm – 1 ps 5×15 mm – 3 pcs 3×12 mm – 6 pcs 4×6 mm

Full building kit XL

• Lasercut parts in plywood and balsa
• Drawing of plane 1:1
• Extra wooden parts (balsa sheets, sticks etc. FULL KIT)
• Balsa sheets: 9 pcs. 1,5 mm – 1 ps 2,5 mm – 1 ps 3,0 mm
• Balsa sticks: 10 pcs 10×9 mm – 9 pcs 10×10 mm – 18 pcs 5×10 mm – 18 pcs 6×6 mm – 12 pcs 5×5 mm – 1 ps 5×15 mm – 6 pcs 3×12 mm – 10 pcs 4×6 mm – 8 pcs 3×16 mm
